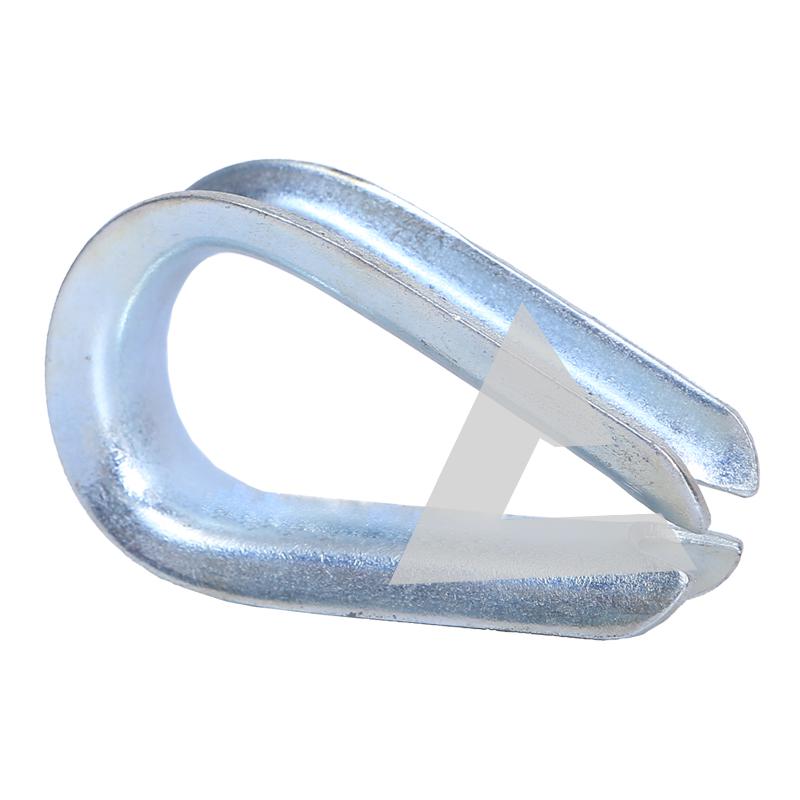

德制DIN6899A套环
产品介绍：
★采用碳钢锻造而成。
★承重力强，使用寿命长。
★表面经喷塑处理，防腐防锈性好。
技术参数：
|
德制DIN6899A套环 DIN 6899A THIMBLE |
||||||||
| SIZE(mm) | Dimensions(mm) | WT/100PCS(kg) | ||||||
| A | B | C | D | E | F | H | ||
| 2.5 | 28 | 21.5 | 16 | 10 | 5 | 3 | 1 | 0.14 |
| 3 | 30 | 23.5 | 17 | 11 | 5.5 | 3.5 | 1 | 0.35 |
| 4 | 34 | 26.5 | 19 | 12 | 6 | 4 | 1 | 0.42 |
| 5 | 36 | 28 | 20 | 13 | 7 | 5 | 1 | 0.80 |
| 6 | 38 | 30 | 22 | 14 | 8 | 6 | 1 | 0.85 |
| 7 | 43 | 33 | 24 | 15 | 9 | 7 | 1.2 | 1.10 |
| 8 | 46 | 35 | 26 | 16 | 10 | 8 | 1.2 | 1.70 |
| 9 | 50 | 39 | 29 | 18 | 11 | 9 | 1.2 | 2.10 |
| 10 | 56 | 43 | 32 | 20 | 13 | 10 | 1.5 | 3.50 |
| 11 | 63 | 47.5 | 36 | 22 | 14 | 11 | 1.5 | 3.70 |
| 12 | 68 | 51.5 | 40 | 24 | 15 | 12 | 1.5 | 5.25 |
| 13 | 75 | 56.5 | 44 | 26 | 17 | 13 | 2 | 7.25 |
| 14 | 82 | 61 | 48 | 28 | 18 | 14 | 2 | 8.33 |
| 16 | 91 | 69.5 | 54 | 32 | 21 | 16.5 | 2.5 | 12.30 |
| 18 | 102 | 78 | 59 | 35 | 24 | 18 | 3 | 18.50 |
| 20 | 114 | 86.5 | 68 | 40 | 28 | 20 | 4 | 31.50 |
| 22 | 126 | 95 | 76 | 44 | 30 | 22 | 4 | 36.50 |
| 24 | 135 | 103.5 | 84 | 48 | 32 | 24 | 4 | 41.70 |
| 28 | 162 | 120.5 | 100 | 56 | 38 | 28 | 5 | 72.10 |
